New-Tech™ Ventilated Enclosure Picture (25 of 36)
Previous Enclosure PictureBackNext Enclosure Picture
New-Tech Ventilated Enclosure Picture #25

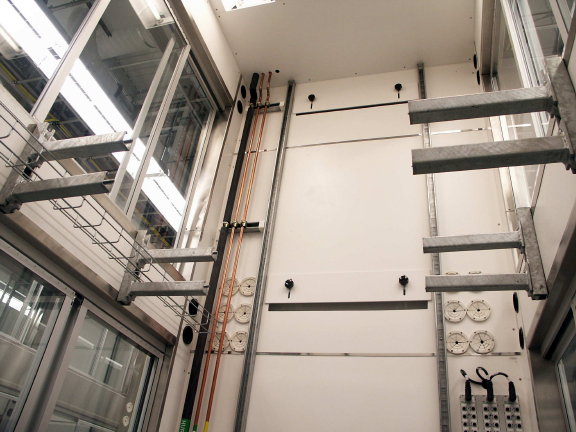

Ventilated Enclosure Picture VE-25     (#8-134)

  • View of the Fabrication and Assembly of the Custom Double Entry Walk In Ventilated Enclosures shown in picture VE-14, VE-15, VE-16, VE-17, VE-18, VE-19, VE-20, VE-21, VE-22, VE-23, and VE-24.
  • This picture shows the Custom Double Entry Walk In Ventilated Enclosures installed on site.  This is a close up view of the inside of the enclosures.  This view shows the white rubber pass-through's, galvanized Unistrut brackets, wire baskets and vertical Unistrut that were all installed to allow the users a convenient location to attach electrical service cords, Ethernet cables, equipment control wires and stainless steel plumbing service tubing.
