New-Tech™ Ventilated Enclosure Picture (7 of 36)
Previous Enclosure PictureBackNext Enclosure Picture
New-Tech Ventilated Enclosure Picture #7

Ventilated Enclosure Picture VE-07

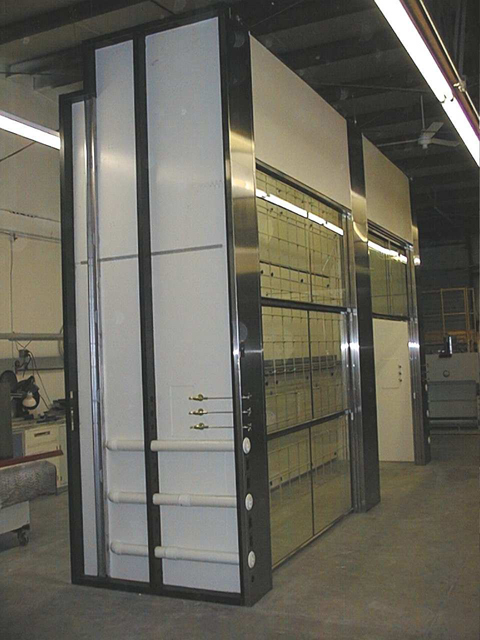

  • Shop Fabrication view of Custom Floor Mounted Fume Hood shown in pictures VE-05 and VE-06.
  • End View of a Custom Floor Mounted Fume Hood measuring 20'-9" wide x 13'-10" tall x 5'-0" deep.
  • This custom floor mounted fume hood was designed to fit into a very specific recessed area in a lab.
  • This custom floor mounted fume hood is designed with two sets of vertically rising sashes with a common center post.
  • This design allowed for the users to remove the common center post to allow 18'-0" of clear access for setting up mini-plant and distillation equipment.
