New-Tech™ Horizontal Sash/Door Hood Picture (18 of 18)
Previous Hood Picture Back
New-Tech Horizontal Sash Fume Hood Picture #18

Horizontal Sash Fume Hood Picture HH-18     (#11-142)

  • Interior Close Up View of the Custom Horizontal Sash Fume Hood shown in picture HH-12, HH-13, HH-14, HH-15, HH-16 and CH-17.
  • This Custom Horizontal Sash Fume Hood has a Stainless Steel Exterior and also included several electrical cord pass through conduits from the front posts to the interior of the hood.

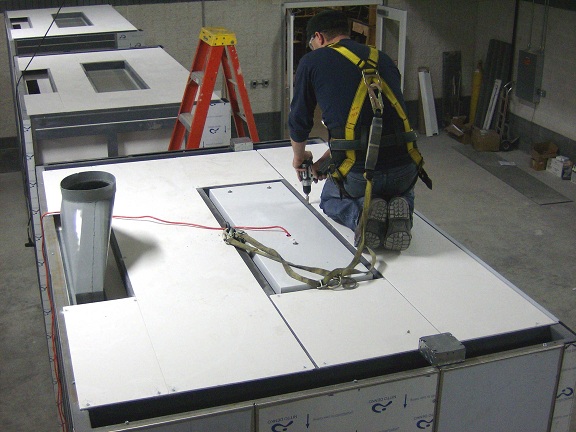

  • New-Tech’s Custom Hoods are designed to support the weight of the ceiling structure and an additional 50 lbs. + per square foot of the ceiling surface and can include a rated tie-off point for fall protection.  This close up view shows one of New-Tech’s Employees installing the top layer of the CR-900 Liner that is placed on the top of the ceiling structure of the hood to allow a smooth, level surface for other trades to stand/kneel on to install the ductwork, electrical and plumbing services.
