New-Tech™ Horizontal Sash/Door Hood Picture (16 of 18)
Previous Hood PictureBackNext Hood Picture
New-Tech Horizontal Sash Fume Hood Picture #16

Horizontal Sash Fume Hood Picture HH-16     (#11-142)

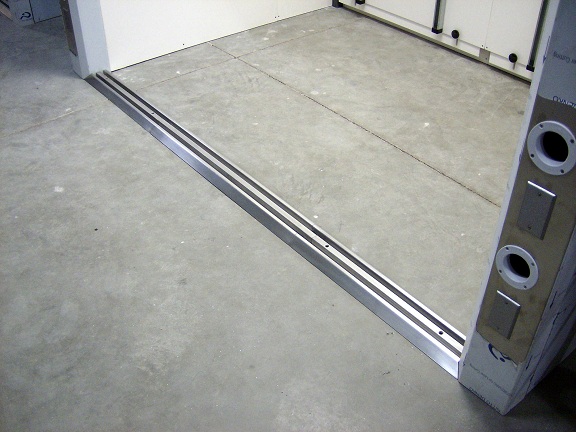

  • Interior Close Up View of the Horizontal Sash Fume Hood shown in picture HH-12, HH-13, HH-14 and HH-15.
  • This Custom Walk-in Fume Hood has a Stainless Steel Exterior and also included several electrical cord pass-through conduits from the front posts to the interior of the hood.
  • This close up view of the three piece Stainless Steel Ramp Style Base Track in place.  This base track is designed to be the bottom guide track for the horizontally sliding glass doors.  Picture HH-17 shows the center section of this track removed.
