New-Tech™ New Vent Box Pictures (2 of 4)
Previous Vent Box PictureNext Vent Box Picture
New-Tech Vent Box Picture #12 (9-119)
  • Vent Box Picture VB-12  (9-119)

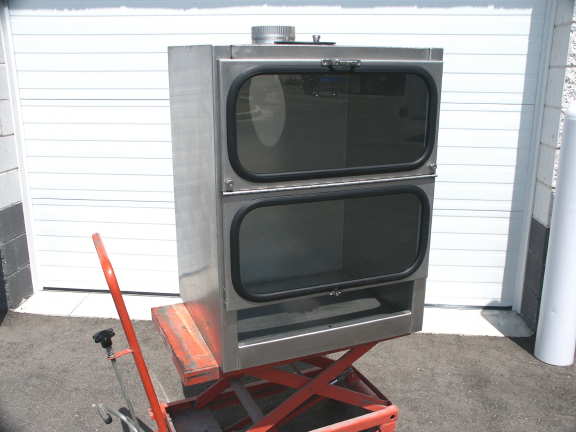

  • Angular Side View of a Custom Vent Box show in picture VB-11.
  • This view shows the upper stationary door and the lower hinged access door in the closed position.  The opening under the hinged access door is designed to allow bypass airflow into the vent box to allow for air changed inside the vent box.
  • The doors on the face of the vent box were made with high temperature glass.
