New-Tech™ Spray Chamber Pictures
(11 of 11)
|

|
 |

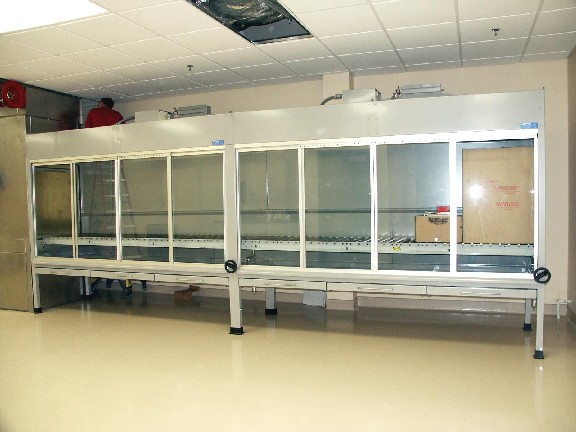

- Spray Chamber Picture SC-11
- Close Up View of the Drying Chamber for the Custom Spray Chamber Assembly shown in picture SC-01, SC-02, SC-03, SC-04, SC-05, SC-06, SC-07, SC-08, SC-09 and SC-10.
- This close up view shows the spray chamber’s Drying Chamber.
- The drying chamber is constructed from cold rolled steel with a baked on epoxy powder coated finish.
- The drying chamber includes a continual exhaust baffle system on the rear wall of the drying chamber.
- The drying chamber also includes two roller conveyors that are adjustable to allow the user to adjust the speed of the items moving from the spray chamber to the drying chamber.
- The drying chamber also includes removable drawers at the bottom of the drying chamber that allows for easy clean up.
- The drying chamber includes top hung, horizontally sliding doors made from laminated safety glass.
- These horizontally sliding doors allow the users access to the drying chamber and also allow the user to view the drying process without having to open the doors.
|
|
