New-Tech™ Spot Exhauster Pictures
(10 of 10)
|

|
 |

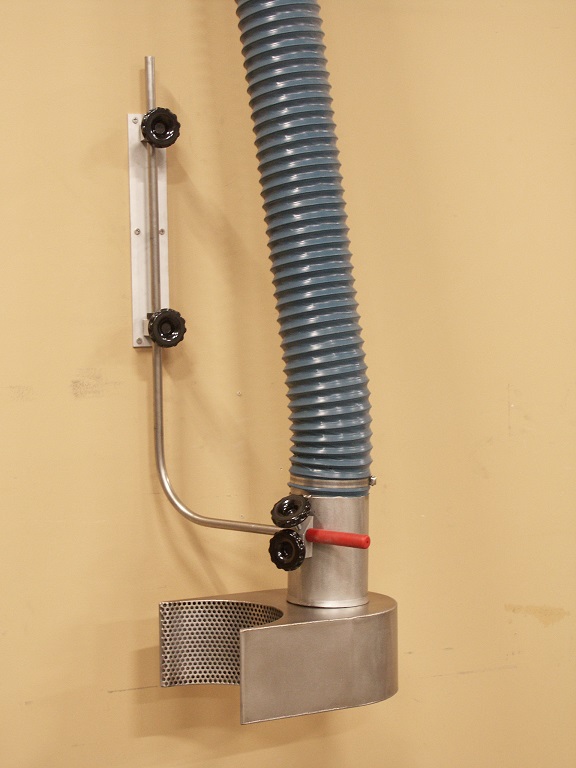

- Spot Exhauster Picture SSE-10 (13-116)
- Front View of a Custom Pinpoint Snorkel Exhauster shown in picture SSE-08 and SSE-09.
- This pinpoint snorkel exhauster consists of a stainless steel horseshoe vent (with a perforated face), an aluminum mounting plate and swing arm, plastic adjustment knobs and a section of smooth bore reinforced flexible hose secured to the horseshoe vent with stainless steel hose clamps.
- This pinpoint snorkel exhauster was custom designed to fit around a funnel that was placed into a 55 gallon drum. This view shows the horseshoe vent in a side facing orientation. This horseshoe was designed and fabricated with a built in swivel joint at the connection from the round diameter duct to the horseshoe vent. This allows more flexibility in the use of the horseshoe vent in addition to the adjustments that can be made with the swing arm.
|
|
