New-Tech™ Fan Platform Assembly Pictures (2 of 12)

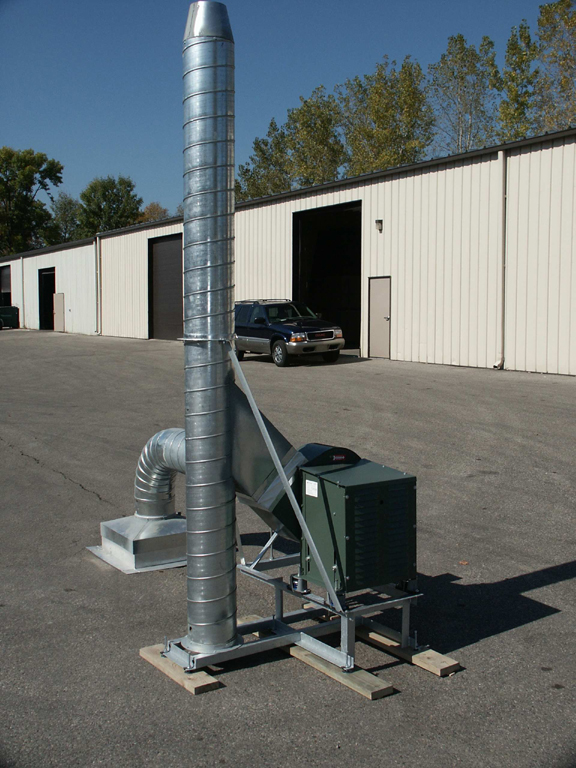

Fan Platform Assembly Picture FP-02
Side/Rear View of the same utility exhaust Fan Assembly shown in pictures FP-01.
This view shows the exhaust stack base and exhaust stack support arms
